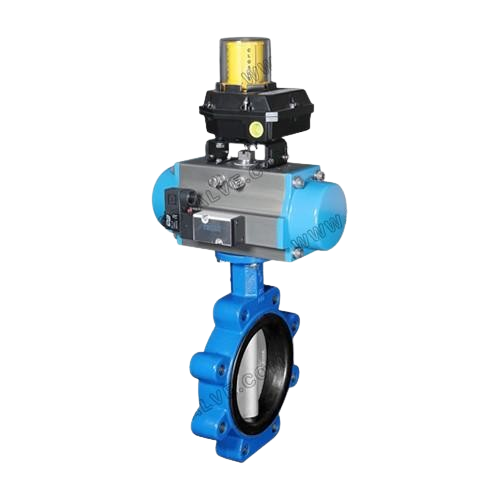

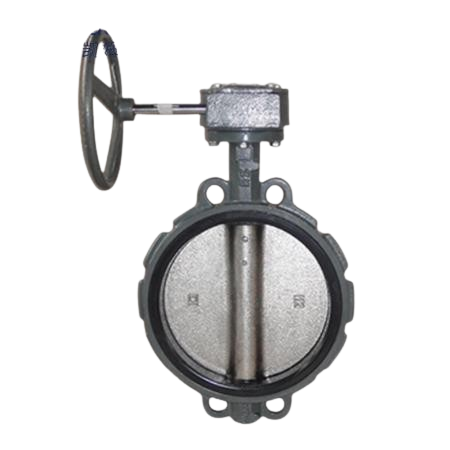

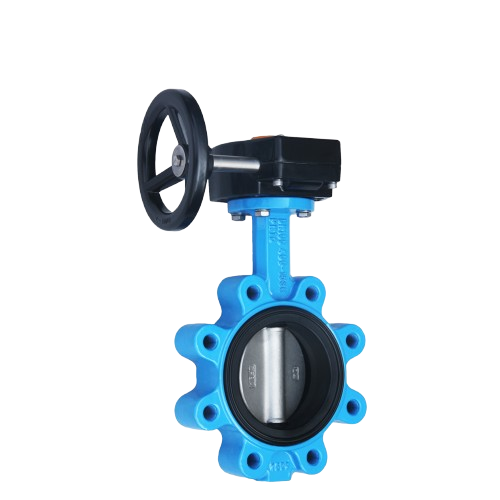

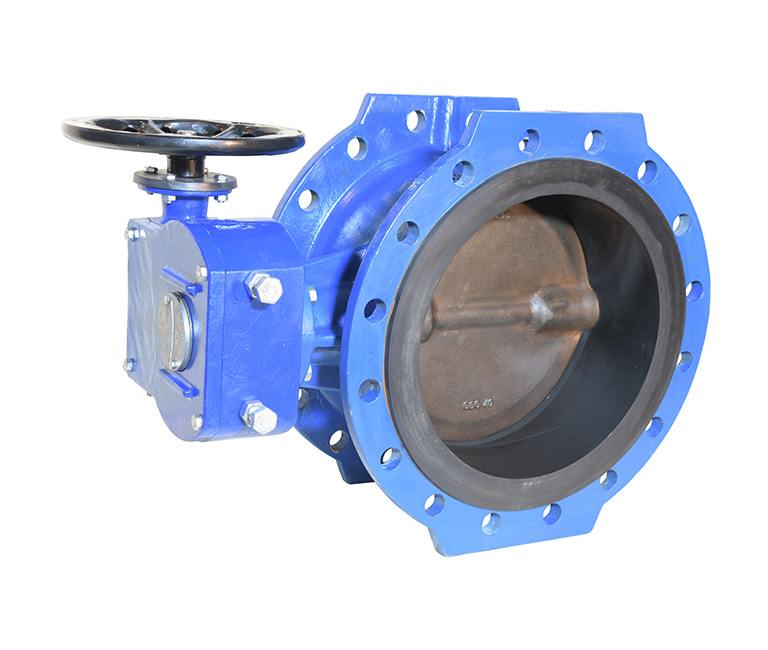

Rubber Lined Butterfly Valves
Rubber Lined Butterfly Valves - Manufacturer & Supplier
Arise is a trusted manufacturer, supplier, and exporter of Rubber Lined Butterfly Valves in Ahmedabad, Gujarat, India. Our rubber-lined butterfly valves are designed for corrosion resistance, durability, and reliable flow control across various industries, ensuring efficient operation in water treatment, chemical processing, and industrial applications.
Key Features
- Excellent Corrosion & Chemical Resistance – Suitable for aggressive media
- Soft Seat Design for Zero Leakage – Ensures bubble-tight shutoff
- Compact & Lightweight – Easy to install and maintain
- Wide Range of Elastomer Linings – EPDM, NBR, Neoprene, and more
- Durable & Cost-Effective – Long service life with minimal maintenance
- High Flow Efficiency – Smooth operation with low pressure drop
Technical Specifications
- Size Range: 2” to 48”
- Pressure Rating: PN6, PN10, PN16, ANSI 150#
- Body Material: Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel
- Disc Material: Stainless Steel, Coated Carbon Steel, Bronze
- Lining Material: EPDM, NBR, Neoprene, Viton, Hypalon
- End Connections: Wafer, Lug, Flanged
- Temperature Range: -40°C to +120°C (varies by lining)
- Actuation Options: Manual, Pneumatic, Electric
- Standards & Certifications: API 609, ISO 9001, ASME B16.5
Applications
- Water & Wastewater Treatment Plants
- HVAC & Cooling Systems
- Chemical & Petrochemical Industries
- Food & Beverage Processing
- Mining & Slurry Handling
- Marine & Offshore Applications
Why Choose Arise Rubber Lined Butterfly Valves?
- Superior-Quality Rubber Linings for Maximum Protection
- Manufactured to Global Industry Standards
- Reliable Performance with Competitive Pricing
- Custom Configurations Available
- Prompt Delivery & Exceptional Customer Support
For high-performance Rubber Lined Butterfly Valves, contact Arise today!
